| PCB Manufacture |
| |
| |
|
| |

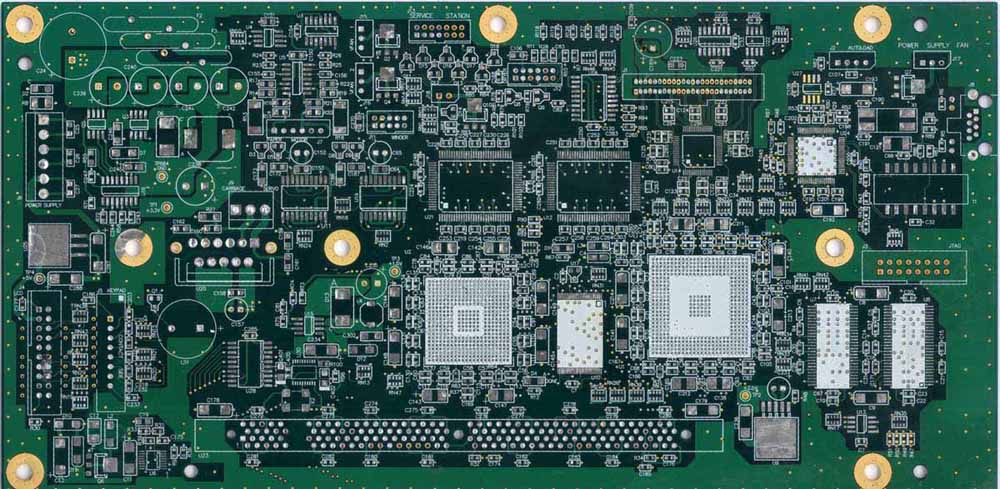

Strive Technology has PCB manufacture services to meet all of your products needs. Our PCB products, services can save your time, reduce design and development costs. Provide us with your design files/gerber files and we will produce your PCBs on-site here in our China manufacturing facility.
You can however simply provide us with a schematic and we will produce the design files for you.
Our PCB services can offer:
| * Single-Sided To 28 Layers |
| * Flexible Circuits 1-4 layers |
| * Urgent Prototype 2-4 Days |
| * Standard Prototypes In 4-8 Days |
| * PCB Volume Production In 8-12 Working Days |
| * PCB Quotes In 12-24 Hours You have a wide choice of printed circuit board options including:- |
| *Layer Count |
| *Material Spec |
| *Surface Finish |
| *Soldermask Colour |
| *Silkscreen Colour |
| *Copper Weight |
| PCB's capabilities |
ITEM |
TECHNICAL DATA |
Materials |
FR-4, CEM-3, Teflon, Aluminum, Rogers, High Tg, Special materia |
Layer |
1~20 layers |
Max. panel size |
540 × 520 mm |
Thickness finished |
0.25~5.0 mm |
Copper thickness |
Outer layer：0.5oz~5oz Inner layer：0.5oz~4oz |
Tolerance of finished board |
± 0.15mm |
Min.line width/sapcking |
0.10mm/0.10mm |
Aperture tolerance |
PTH±3MIL，NPTH±1MIL |
Accuracy of hole position |
±2MIL |
Min hole /PAD |
0.1mm/PAD:0.4mm. |
Controlled impedance |
±10%（min±7 Ohm） |
Outline tolerance |
CNC routing ：±0.1mm/? Punching：±0.15mm |
Layer to layer Excursion |
± 0.1mm |
V-cut Angular deviation |
0.6~3.2mm |
V-cut Angular deviation |
± 5° |
V-CUT Position controller |
± 0.1mm |
Min legend |
0.15mm |
Min PAD solder opening |
0.01mm |
Aspect ratio |
10:01 |
Angularity |
≤0.7% |
Antiflaming level |
94V-0 |
Electric strength |
＞1.3KV/mm |
Peel strength |
1.4N/mm |
Surface finished |
Lead Free HASL,Immersion Gold/Tin/Silver,OSP,Gold Finger Plating,Selective Immersion Gold,Gold Plating |
|
| |
|
|
